How to Move Volume Slice

If you want to extend a dynamic volume, but there is not contiguous unallocated space, then you can move volume slice from one disk to another, which can help generate contiguous unallocated space to extend the dynamic volume successfully.


By AOMEI / Updated on May 12, 2023

Share this: instagram reddit

Why need to move volume slice?

To extend dynamic (system) volume, there must be some contiguous unallocated space on the same disk. Normally, we can shrink other volume to generate unallocated space, but if other volumes haven’t available free space to be shrunk. What shall we do? In such a case, you can use AOMEI Partition Assistant Server, which comes with a dynamic disk manager. Its “Move Volume Slice Wizard” can migrate volume slice from one disk to another. Then you can get the contiguous unallocated space.

How to use "Move Volume Slice Wizard"?

To complete this operation, there must be another empty dynamic disk or some unallocated space which is equal or larger than the volume slice you want to move.

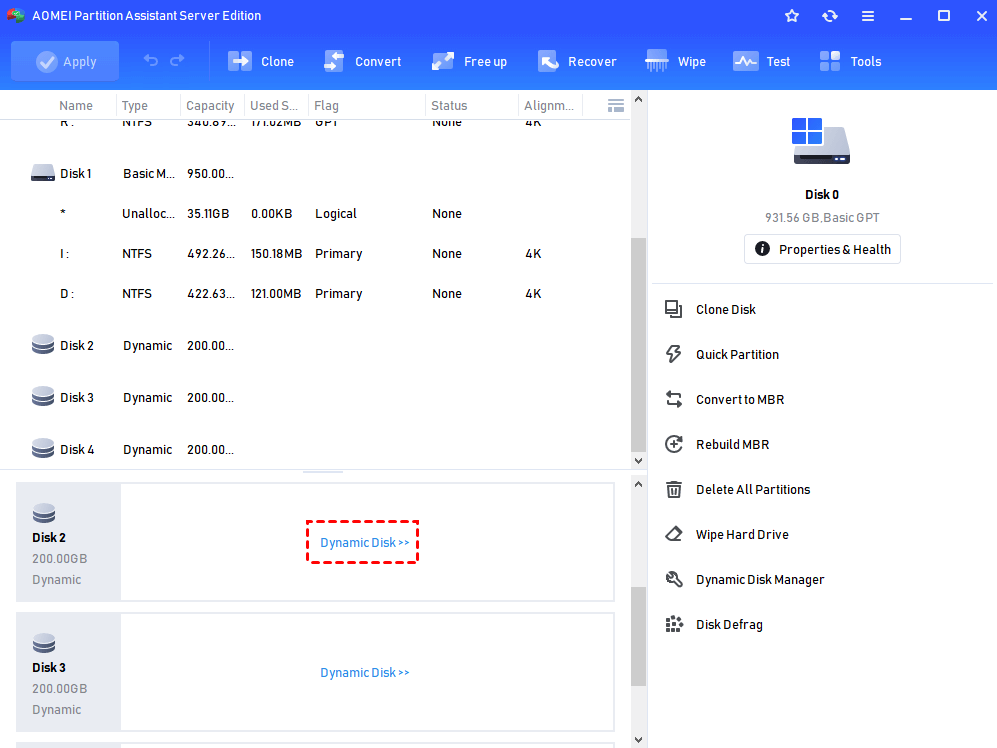

Step 1. Install and run the AOMEI Partition Assistant Server. After choosing the target disk, select the “Dynamic Disk Manager” on the right pane. Then you will enter a new interface, here you need to click “Move Volume Slice Wizard” on the left “Wizards” menu.

Dynamic Disk Manager

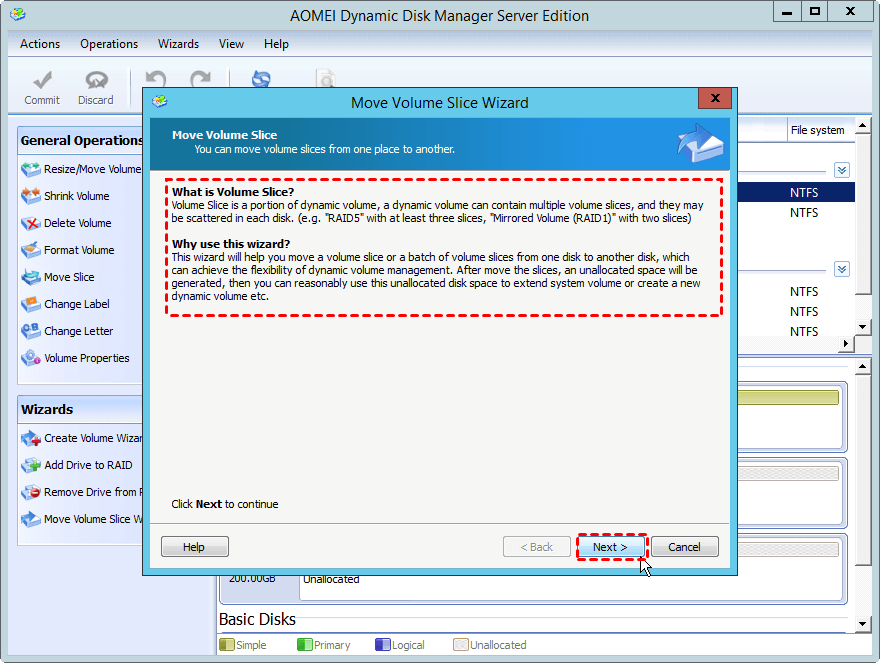

Step 2. Click "Move Volume Slice Wizard" in the left navigation. In the pop-up window, the descriptions can help you learn more about volume slice and why use the wizard. Then, click "Next" to continue.


Step 3. In the following dialogue box, please select the volume you want to move.

Select Volume

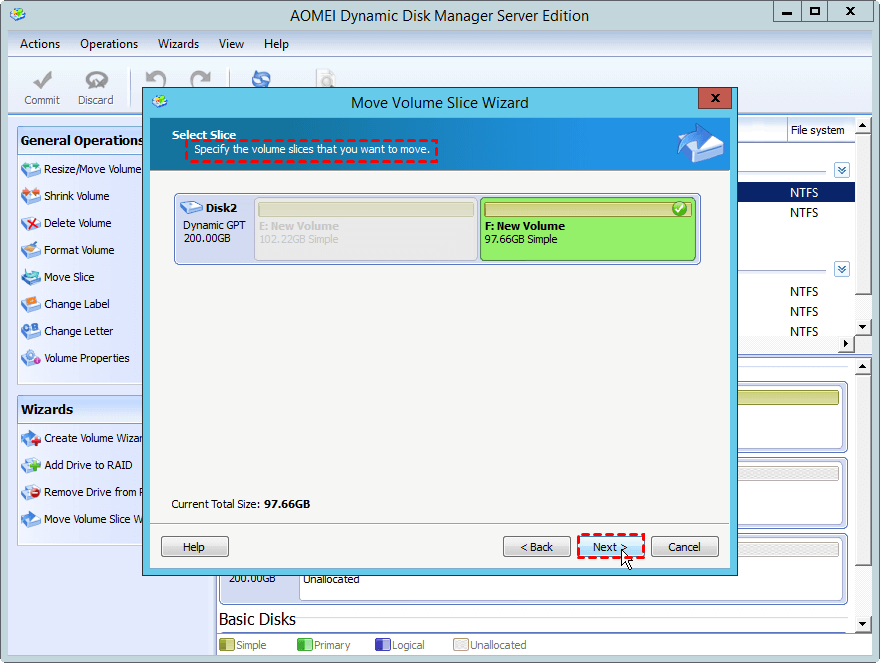

Step 4. Specify the slices that need to be moved. Then, click "Next".

Specify Volume Slice

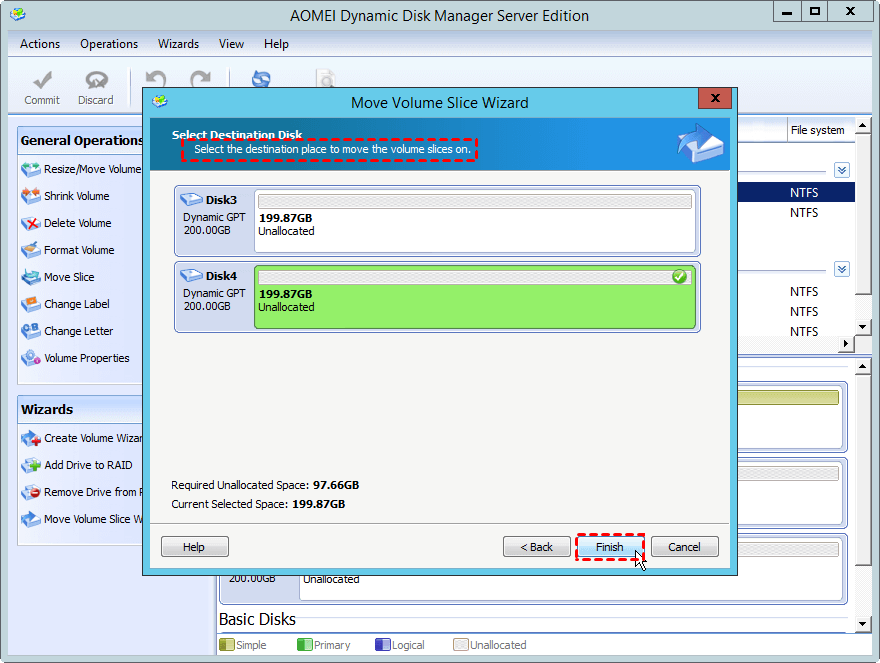

Step 5. Select the destination disk where the volume slice will be moved on.

Select Destination Disk

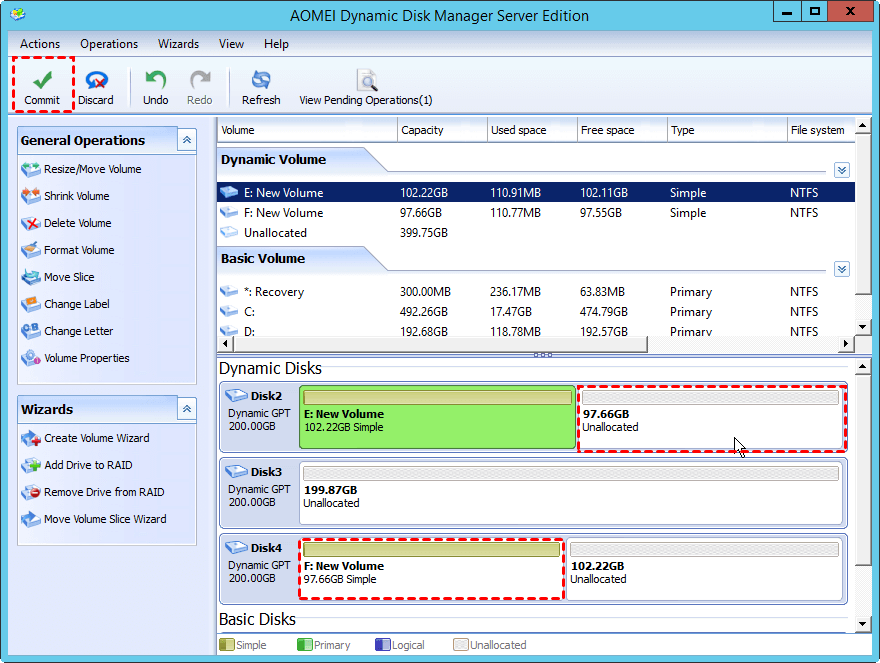

Step 6. After clicking "Finish", you will find the F: volume has been moved from disk 2 to disk 4, and some unallocated space generates on disk 2. Then, click "Commit" to apply the changes to the physical disk.


Now, with the help of moving volume slice, you can use the unallocated space to extend dynamic system volume to fix low disk space problem.

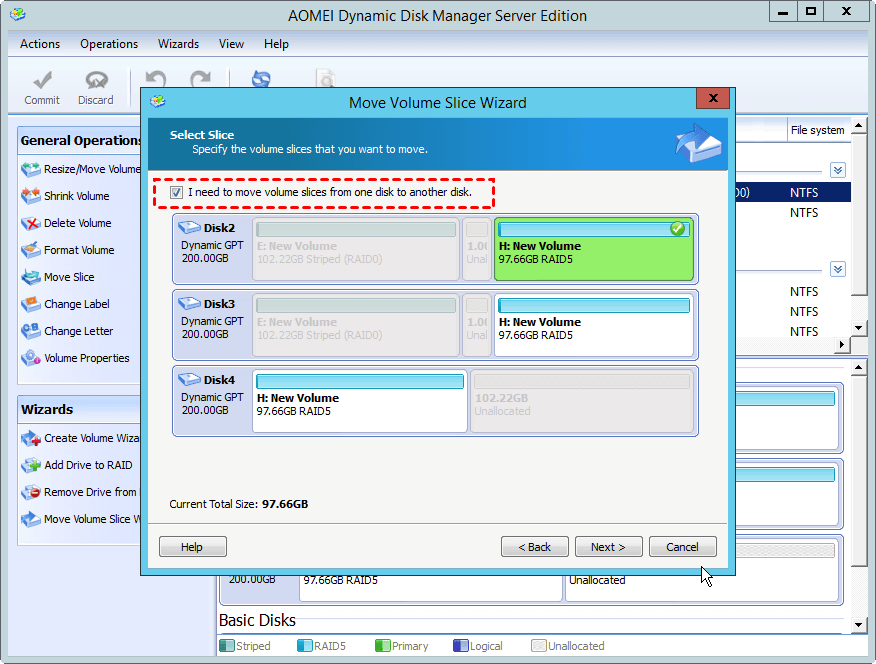

Tip: For striped volume, mirrored volume and RAID-5 volume, you should tick the option: I need to move volume slices from one disk to another disk.

Select Raid Slice
