Learn how to resize (extend and shrink) dynamic disk partition volume in Windows 7/8/Vista/XP/2000 and Server 2000/2003/2008/2011/2012 without losing data.
By AOMEI / Last Updated August 2, 2019
Quick Links
Extend, Shrink and Resize Dynamic Volume with AOMEI Dynamic Disk Manager New
Resize Dynamic Disk Partition (Volume) with built-in Windows Disk Management
For Windows business operating system, you can
free choose the disk as either a basic disk or a dynamic disk. A basic disk is used by
most common of users, it just a normal hard drive with no special features. A dynamic
disk contains dynamic volume (also called dynamic partition), if you convert a basic
disk to a dynamic disk by windows built-in disk manager, you will get a serious
performance boost. Dynamic disk supports data redundancy, fault
tolerance and some level of properties.
Dynamic Disk can be applied to the following operating system:
Windows 2000 All Editions
Windows 2003 All Editions
Windows 2008 All Editions
Windows XP Professional Edition
Windows Vista Business, Ultimate, Enterprise Edition
Windows 7 Professional, Ultimate, Enterprise Edition
The following operating system does not support dynamic disk:
Windows XP Home Edition
Windows Vista Home Basic Edition and Home Premium Edition
Windows 7 Home Basic Edition and Home Premium Edition
Through dynamic disks, you can do things like spanning volumes between multi-disks (this is useful function when you find your data volume is running low disk space). You can also stripe a volume to help the volume spans multiple hard drives but that on the volume each files is actually spread over the disks in the stripe set. Obviously, striping volume can dramatically increase the IO performance because all files and data are read from and written to simultaneously multiple hard disks. For instance, if you make a striped volume that consist of four hard disks, then one four of the file would be on each disk. Thus, the file could be read in one four the time that it would take, because all disks are being simultaneously accessed.
In addition, dynamic disks provide a fault tolerance for protecting your data. One fault tolerance mechanism is called mirroring disk (it must consist of two disks). This means is that anything will be written simultaneously to the two disks. So, if disks fail or corrupt, you have a backup to replace the corrupted disk. Another fault tolerance volume is RAID-5 (that is striping volume with parity; consist of three disks at least). It is a combination of striping and mirroring volume, and you will find it not only can be fault-tolerant and also improve the read/write speed of data.
Dynamic disk resizing will be a great benefit to your computer performance and disk space management. For example, we want to add more free space to volume, especially for system partition, to solve low disk space problem. In order to make good use of disk space, we need to reduce large or unused volume to free up some unallocated space for small partition.
You can press WIN + R, enter DISKMGMT.MSC in the run dialog to launch the Disk Management Console. This console will allow you to view current disk configuration and configure or manage your basic disk and dynamic disk. You can also upgrade your existing basic disk to dynamic, and then you can do the following works on dynamic disks:
Create, delete and format dynamic volume.
Extend and shrink simple volume or spanned volume.
Expand a simple volume to become spanned volume.
Add mirror for dynamic system volume and each of simple volume.
Break or remove mirrored volume to simple volume.
Add, remove and change drive letter for each of dynamic volume.
Import foreign dynamic disks.
Reactivate missing or failed dynamic disks.
Explore dynamic disk properties (e.g. total space, free space and used space etc).
Convert an unallocated or empty dynamic disk to basic.
According to different Windows Versions, you can use the above features which are different too. Moreover, you could run AOMEI Partition Assistant Server to process the following tasks, but Windows built-in disk manager is unable to allow you do below:
Extend dynamic system/boot volume in Windows 2000/XP/2003.
Directly convert dynamic disk containing dynamic volumes to basic.
Extend and shrink striped volume and RAID-5.
Directly resize mirrored volume.
Move dynamic volume from one location to another.
Repair unreadable or invalid dynamic disk.
On dynamic disks, you can create a various volumes including simple, spanned, striped, mirrored and RAID 5 volumes to meet your different requirements. You could assign a drive letter and volume label to differentiate them.
AOMEI Partition Assistant Server is specially designed for users who want to remove the limitation from built-in Disk Management and are looking for better solution to resize dynamic disk. The "Resize/Move Volume" feature will help you:
Extend dynamic partition and volume, including system/boot/striped/mirrored/RAID-5 volume, to maximize computer performance as well as better dynamic disk partition management.
Shrink dynamic partition and volume (support all types of dynamic volumes) to redistribute free disk space.

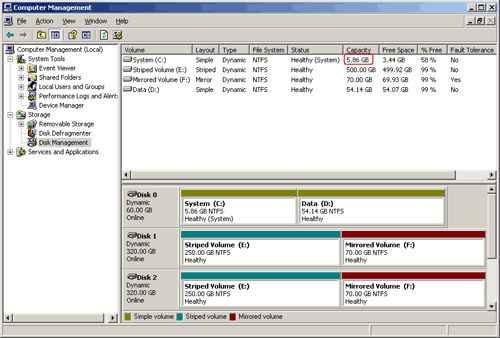

Case: The first dynamic disk is partitioned into a small system volume(C
drive, simple volume) and a large data partition (D drive, simple volume). The detailed
configuration is as below screenshot:
The following will provide
you with step-by-step instruction to resize dynamic disk with AOMEI Partition Assistant Server.

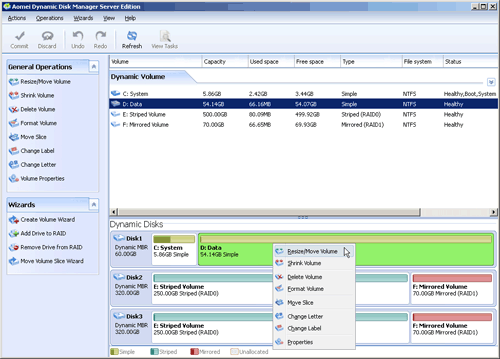

Step1: Install and launch the software, click "Dynamic Disk". Then, right-click volume D and
select "Resize/Move Volume" in the drop-down menu.

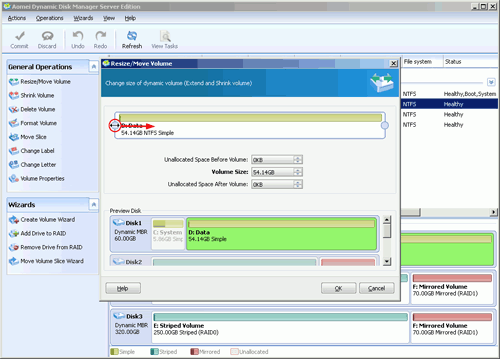

In the pop-up window, drag the left slider rightwards to shrink dynamic volume.
Then, click "OK".

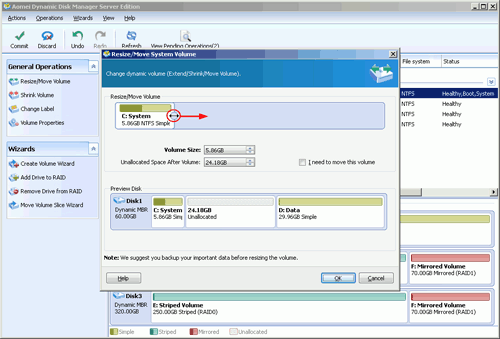

Step2: After completing the steps above, there will be some unallocated
space behind system volume. Then, right-click C drive and select "Resize/Move
Volume". In the pop-up window, drag the right slider rightwards to extend
system partition into unallocated space. Then, click "OK".

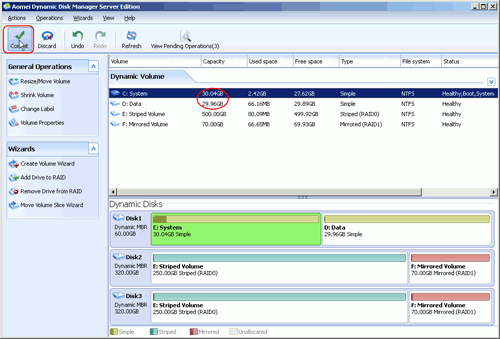

Step3: You will preview the extended C drive and shrunk volume D in the
graphics view. To save the changes, you need to click "Commit" on the toolbar.

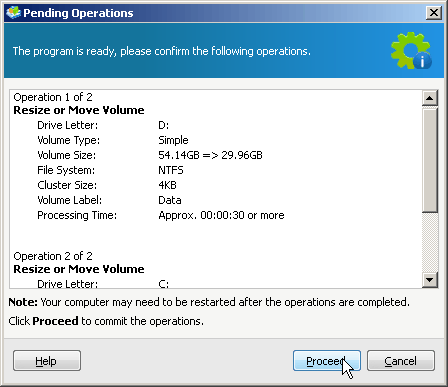

After clicking commit, a window will pop up, listing the pending operations.
Then, click "Proceed" to perform.

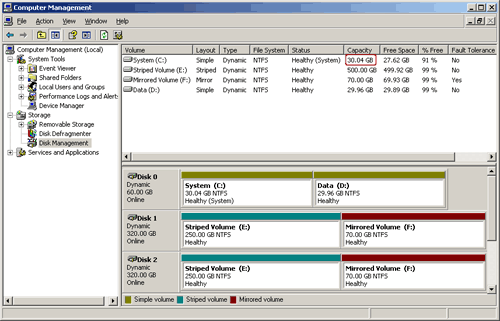

The operations need to be completed under Reboot Mode, namely, restarting is
required.
In some cases, you can resize dynamic disk without third-party software, however, the followings you should pay attention to:
Firstly, you must be aware that only simple volume and spanned volume can be resized. Windows built-in disk manager is unable to resize a striped and RAID-5 volume and mirrored volume, but AOMEI Partition Assistant Server can resize and handle them.
Secondly, under Windows XP/2000/2003, Windows built-in disk manager is unable to shrink dynamic volume, but you can extend dynamic simple volume by the only way that uses spanning multi-disks. Meanwhile, the existing spanned volume can be extended again when it is too low disk space or you want to increase more free space for it.
Besides, under Windows 7/8/Vista/2008, you can extend dynamic volume as well as shrink, in other words, you can resize dynamic volume via the free disk manager. The following is an example to help you clarify.
Similar to Vista, Windows 7 and Server 2008, they have the option to resize dynamic
partition/volume, this means you can shrink or extend partition on the dynamic disk.

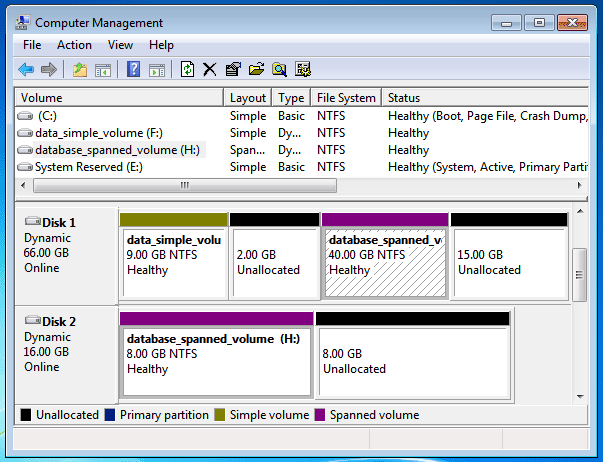

At the first, enter DISKMGMT.MSC to open Windows disk manager as follows.

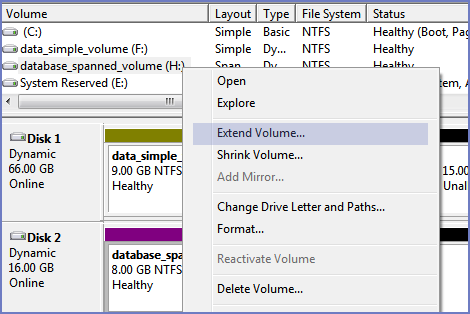

If you want to extend dynamic volume, right click on it then choose "Extend
Volume" and then next step you need to specify the amount of space by which you want to
extend the dynamic partition.

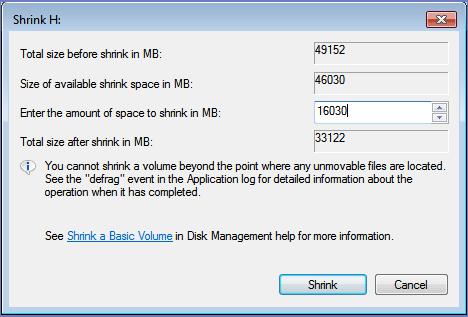

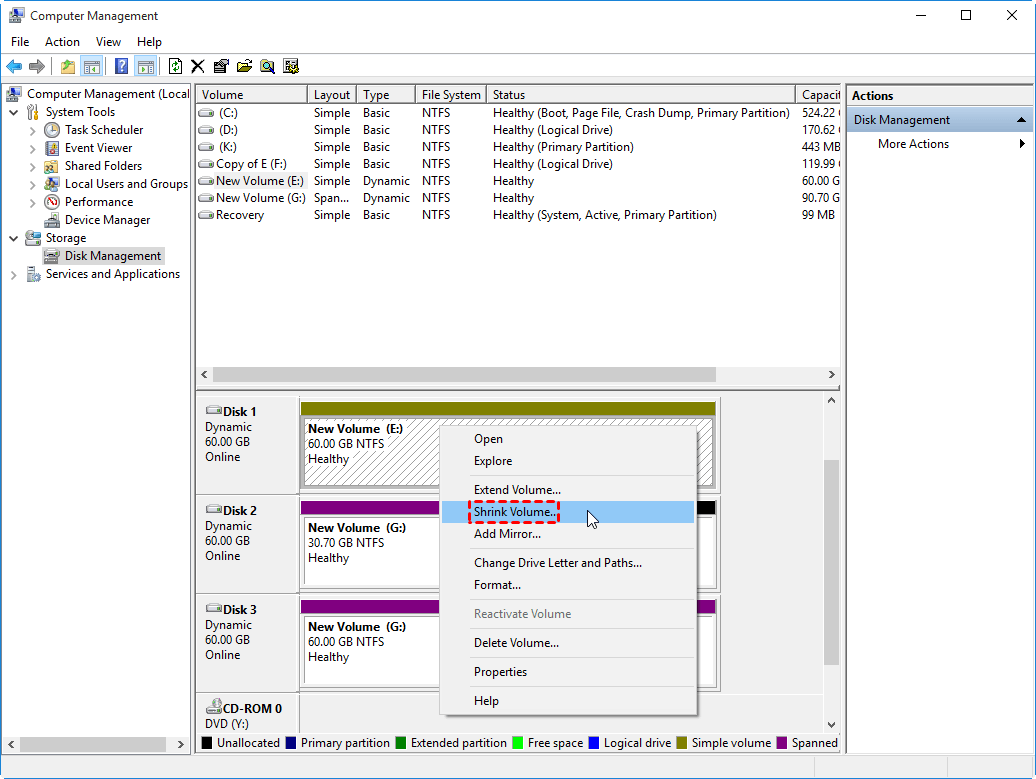

To resize dynamic volume to smaller space, right click the volume you desired to
shrink and select the menu option "Shrink Volume" as above screenshot. This will pop up
the Shrink Dynamic Volume Dialog and you also need to specify the amount of space that
you want to shrink.
You could practice this in order to find more valuable things. You also indirectly resize mirrored volume, the particular method is that break the mirror before resize it, after completing the resize, you can again add mirror for the volume.
Dynamic disk provides some features which basic disk does not have. We can create
simple volume, spanned volume, striped volume, mirrored volume and RAID 5 volume to
suit your all kinds of requirements. Also, it can better protect data and enhance
read/write performance by fault tolerance and striped volume.
Compared with
Windows Disk Management snap-in, AOMEI Partition Assistant Server is much more advanced to resize dynamic disk,
extend dynamic system volume and expand/shrink dynamic partition. At the same time,
it also supports for resizing dynamic disk that contains striped volume, mirrored
volume and RAID-5 volume.
How to increase striped (RAID 0) volume?
Tips: Choose the right version according to your needs or operating systems.
AOMEI Partition Assistant Pro Edition is especially designed for business users to manage dynamic disk storage type for optimal performance in Windows 7/8/Vista/XP/2000 both 32 bit and 64 bit.
AOMEI Partition Assistant Server Edition provides award-winning Software RAID management solutions. Besides, it is also a dynamic disk/volume management software and disk converter in Windows Server 2000/2003/2008/2011/2012 and Windows 7/8/Vista/XP/2000.
For Enterprise users, AOMEI Partition Assistant Unlimited Editionallows unlimited usage within one company to save money. It is a wise and cost-effective choice.
For IT services providers, AOMEI Partition Assistant Technician Edition is recommended; it allows to offer technical services to multiple clients.
