Kingston USB Format Tool Software Free Download for Windows 11, 10, 8, 7

Here, we will share great Kingston USB format tools, with which you can easily format (write protected) Kingston USB drive in Windows 11, 10, 8, 7.


By Dervish / Updated on October 9, 2023

Share this: instagram reddit


“My Kingston 4GB flash drive was working fine for two years but after formatting it suddenly became inaccessible and requires formatting and gets popups that your USB is write protected and Windows cannot format it. Is there a Kingston USB format tool to force format the write protected Kingston USB drive? I would like to make the flash drive functional again, please give me solution. Any help is appreciated!”

Why format (Kingston) USB drive?

Nowadays, USB flash drive are widely used in our daily life. But sometimes you will be noticed that your USB flash drive needs formatting Some of you may puzzled that why format USB drive? The common reasons are as follows:

Cause various operating systems must manage disks in a certain way, only the corresponding format (namely,file system) can make the structure of the disk be recognized by the operating system. For example, Windows and Apple systems have different disk management methods and are not compatible with each other. Or some device only support specified file system. So you must format your storage drive to the suitable file system.

When you buy a new USB flash drive without being formatted, you must format it at first. After that, you can use it normally. Or when the USB drive is attacked by virus, formatting the drive is also an effective way to eliminate viruses. Moreover, if your USB flash drive becomes write protected or read only, formatting also helps you with that.

Format Kingston USB flash drive with Windows built-in tool

If you cannot format Kingston USB flash drive via Disk Management or Windows Explorer, it’s time to resort to another Windows built-in tool: DiskPart, a command to help manage your PC's drives (disks, partitions, volumes, or virtual hard disks). The specific steps are as follow:

1. Press “Windows” + “R” to open the Run box, type “diskpart” in the run dialogue, and then hit “Enter”.

2. In the pop-up window, input the following commands and hit “Enter” after each command.

  • list disk

  • select disk n (here “n” is the disk number of USB drive.)

  • list partition

  • select partition m (here “m” is the number of partition going to be formatted.)

  • format fs=fat32 (here if you need to format the Kingston USB drive to other file system like exFAT, replace the command with “format fs=exfat”.)

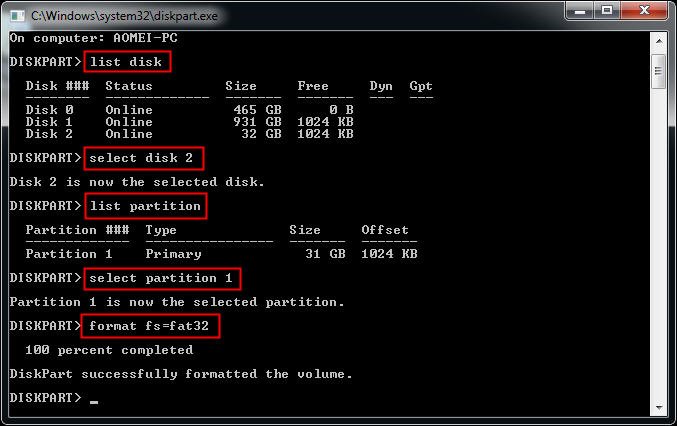

Format via Diskpart

Note: if the Kingston USB drive is set into read only (write protected) mode, you need to first remove the read only attribute by running the command “attributes disk clear readonly” after select disk#.

Download the free Kingston USB format tool software

If you think it’s complicated to format a Kingston USB via Diskpart, or you fail to format it to FAT32 because it is larger than 32GB (that’s a limitation of all Windows built-in formatting tools), you can turn to a third party Kingston USB format tool. Here I strongly recommend AOMEI Partition Assistant Standard.

This free USB drive format tool can perform many complicated formatting tasks easily. For example, it is able to format large hard drive to FAT32, format corrupted /RAW hard drive, format partition to Ext4/Ext3/Ext2 under Windows Environment.

3 Steps to format (write-protected) Kingston USB with AOMEI Partition Assistant

The below steps are how to format Kingston USB with AOMEI Partition Assistant. If your Kingston USB is write protected due to damaged file system, this method is also effective.

Download Freeware Win 11/10/8.1/8/7/XP
Secure Download

Step 1. Download, install and run this Kingston USB format tool. Find your Kingston USB drive and right click it to select “Format Partition”.

Format 2tb Partition

Step 2. In the pop-up window, choose the FAT32 (or other file system you need) file system. And here you can also specify “Cluster Size” under the file system if you need to. Then click “OK”.

Format 2tb Partition To Fat32

Step 3. After that, it will go back to the main interface. Preview the changes and click “Apply” to complete the operation.



This post brings two great Kingston USB format tools. Now you can choose an appropriate one according to your requirements and situation. As shown above, if you meet the problem current read only state yes, the function "Format Partition" of AOMEI Partition Assistant Standard can also help.

Besides formatting USB flash drives, it also provides you many other powerful functions like create, move, resize, format, delete, copy partition, NTFS to FAT32 converter, migrate OS to SSD and so on. To enjoy more advanced functions like extending NTFS system partition without reboot, erasing SSD drive, recovering lost data, and cloning MBR disk to GPT, you can upgrade to AOMEI Partition Assistant Professional to solve this problem.
