What is Mirrored drive on dynamic disk?

Software-based mirrored drives are mirrored volumes on the dynamic disks. A mirrored volume, also known as a RAID-1 volume, is a fault-tolerant volume that duplicates data on two different physical disks and provides data redundancy by using two identical copies (mirrors) of the volume.

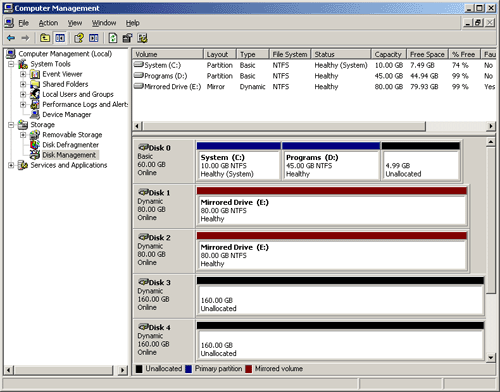

Mirrored Drive

It is impossible to set up mirrored drive on computers that are running Windows Vista, XP, and Windows 2000 Professional. You can realize mirrored drive configuration in the following operating systems:

‚óźWindows 7/8 Professional, Enterprise and Ultimate;

‚óźWindows 2000 Server and Advanced Server;

‚óźWindows Server 2003 (all editions, 32/64-bit);

‚óźWindows Server 2008 (all editions, 32/64-bit);

‚óźWindows Server 2011, 2012;

Why need to replace Mirrored Drive (RAID 1) with larger one?

‚ÄúWe have a three year old HP server with two 33GB Seagate mirrored drives. One of the drives has failed, and I am unable to locate another Seagate drive to replace it. I ended up buying two larger, but cable compatible Seagate drives, with the intention of replacing both the existing drives.¬†Thanks in advance for your help.‚ÄĚ

When the mirrored drive is about to fail, you may need to replace it with another one. Or when the capacity can not meet your growing data storage requirements, the easiest way to solve this problem is to replace mirrored drive with a larger one.

How to replace dynamic mirrored drive with a larger one?

To replace dynamic mirrored drive with a larger one, you need to add two larger disks into your system and convert them to dynamic disks. The following section will take Windows Server 2012 for example and provide two methods to replace dynamic mirrored drive with a larger one, please select whichever is more convenient.

‚ĖĆMethod 1.¬†Replace mirrored drive with Disk Management snap-in

First of all, you can use the Windows native Disk Management to replace mirrored drive. Steps are:

1. Remove mirror from mirrored drive (Disk 1). Right-click mirrored drive and select "Remove Mirror" in the drop-down menu.

Remove Mirror

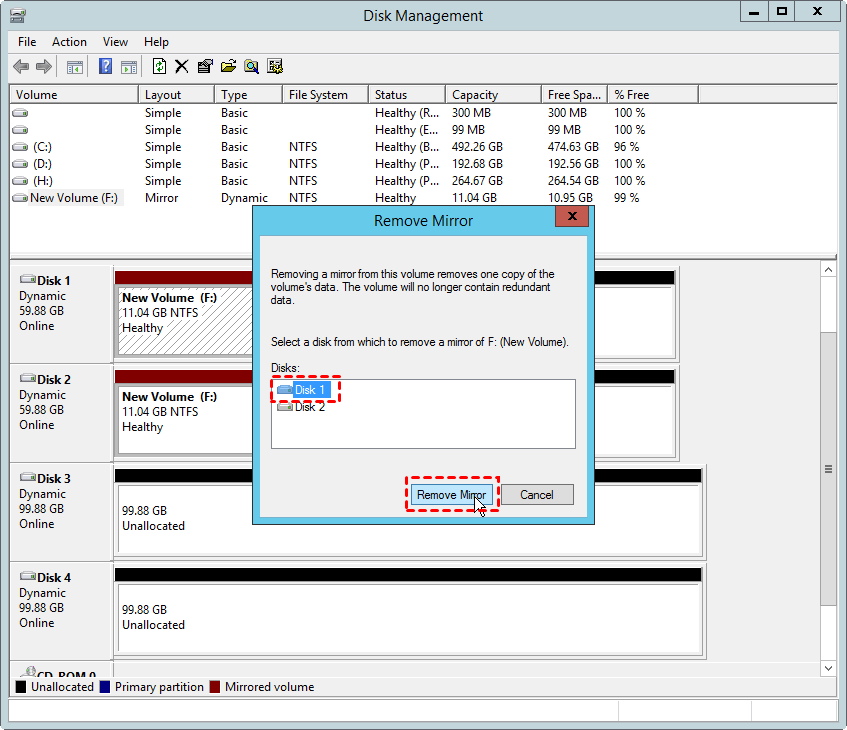

2. In the pop-up dialog box, select Disk 1 and click "Remove Mirror".

Select Disk

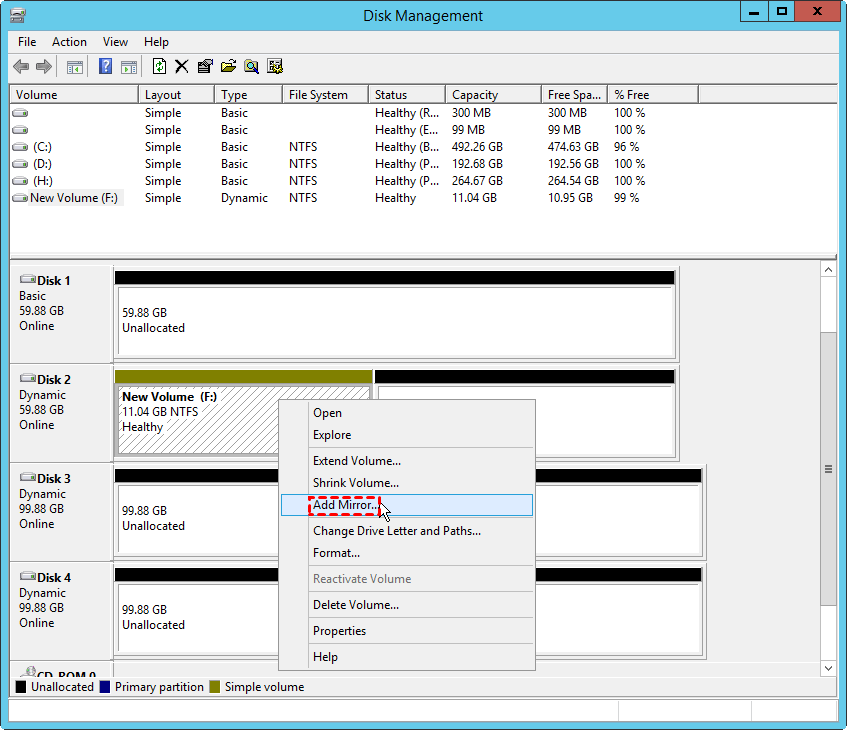

3. Add mirror to the larger drive (Disk 3).  Right click the mirrored drive on disk 2 and select "Add Mirror" in the drop-down menu.

Add Mirror

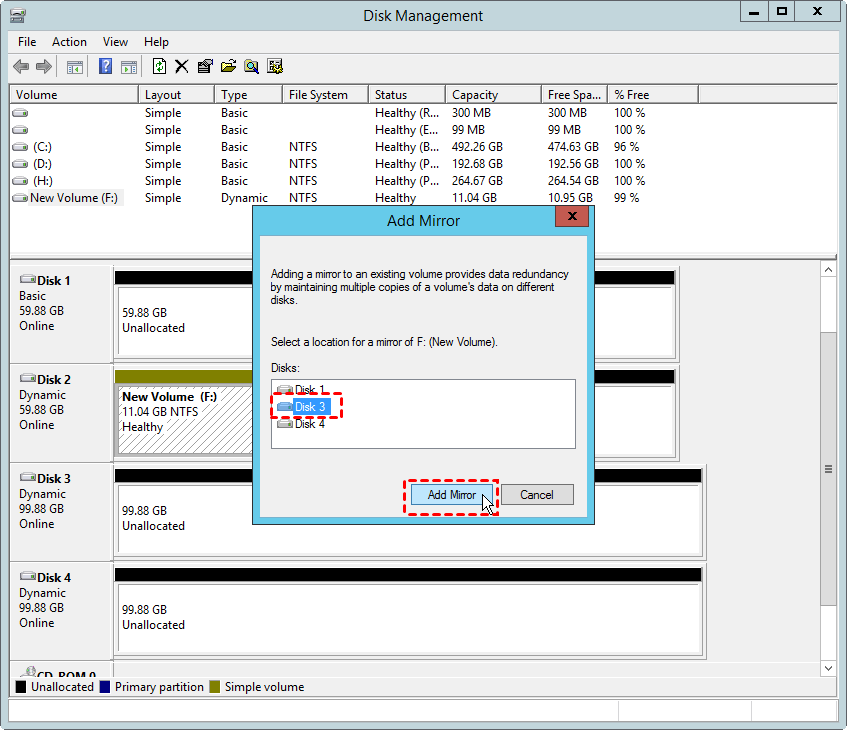

4. In the pop-up dialog box, select Disk 3 and click "Add Mirror".

Add Mirror

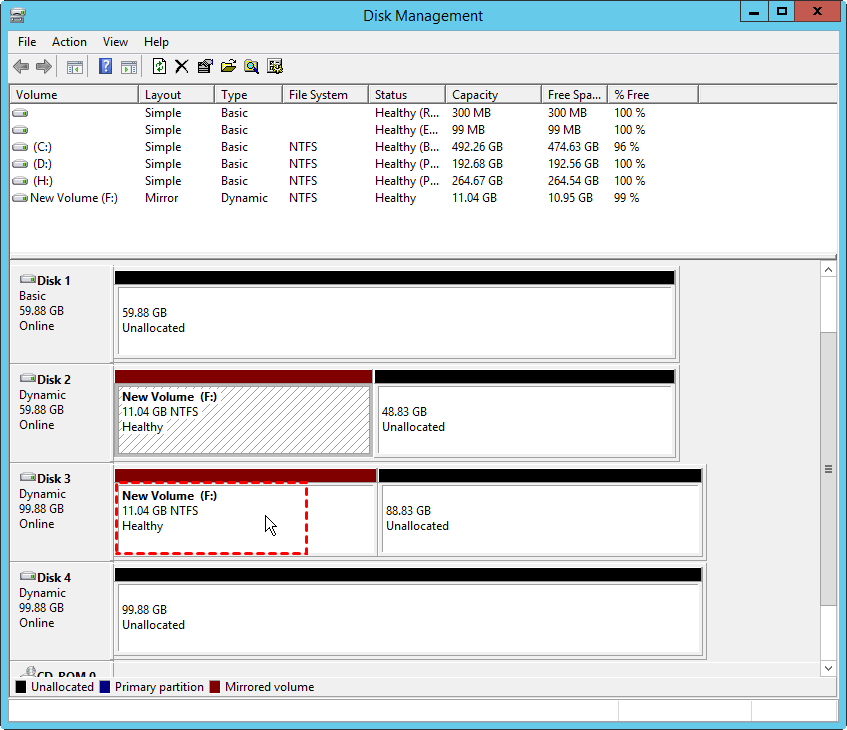

Finally, you can find the new mirror volume on a larger disk.

New Added Mirrored Volume

Repeat those steps to remove mirror volume from another drive (Disk 2) and add mirror to another larger drive (Disk 4).

‚ĖĆMethod 2.¬†Replace mirrored drive with AOMEI Dynamic Disk Manager

The first method requires that you remove one of the mirrored volume and add a new. Not so convenient! To make it as easy as possible, you can use the trustable partition manager - AOMEI Partition Assistant Server. It can directly move mirrored volume slice from one dynamic disk to another to finish this replacement. It is compatible with Windows 7/8//10/Vista/XP/2000 and Windows Server 2000/2003/2008/2011/2012 (both 32 bit and 64 bit)/2016/2019.

Download Free Demo Win Server and PC
Secure Download

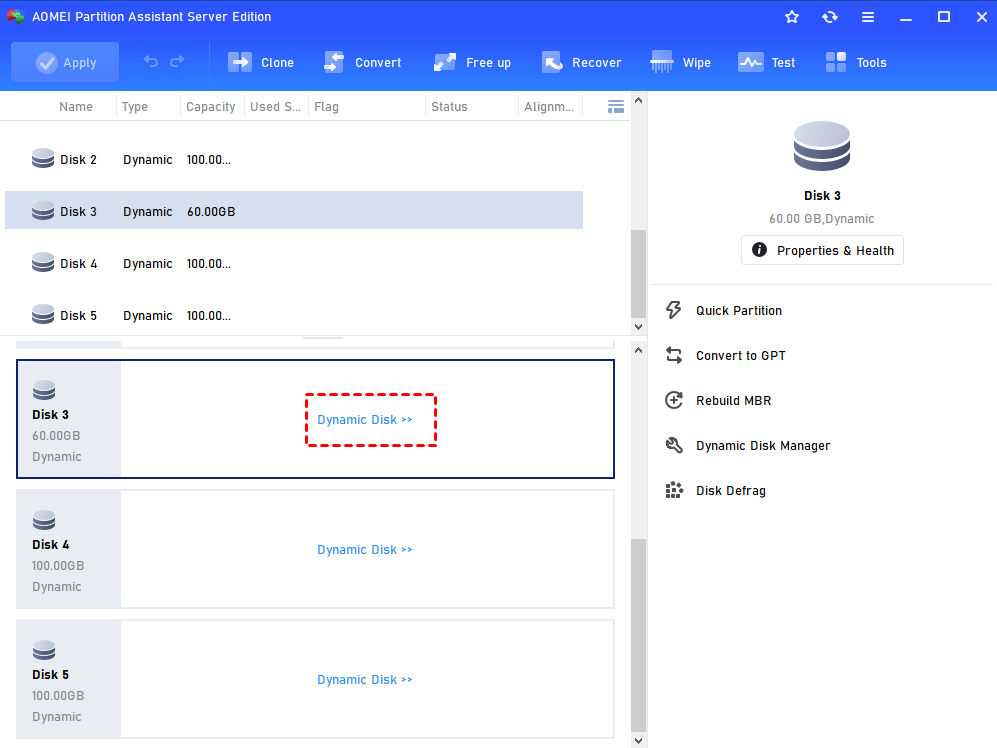

Step 1. Install and run AOMEI Partition Assistant Professional and click "Dynamic Disk" to launch its Dynamic Disk Manager wizard.

Dynamic Disk

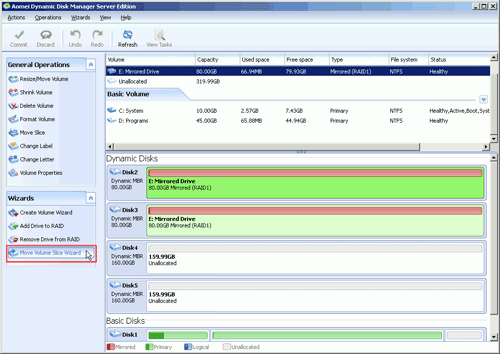

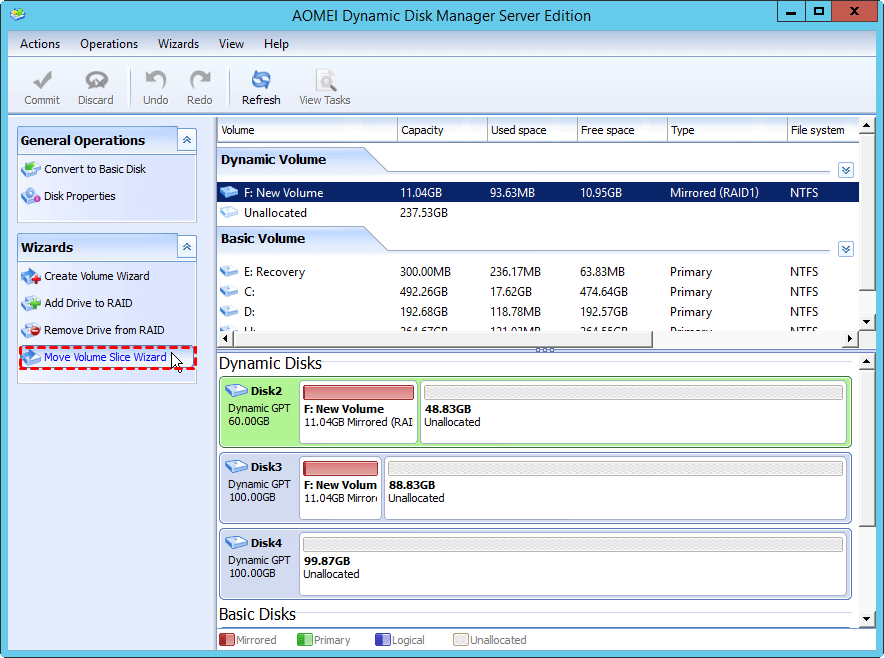

Step 2. Then select "Move Volume Slice" in the left Wizard pane.

Move Slice Wizard

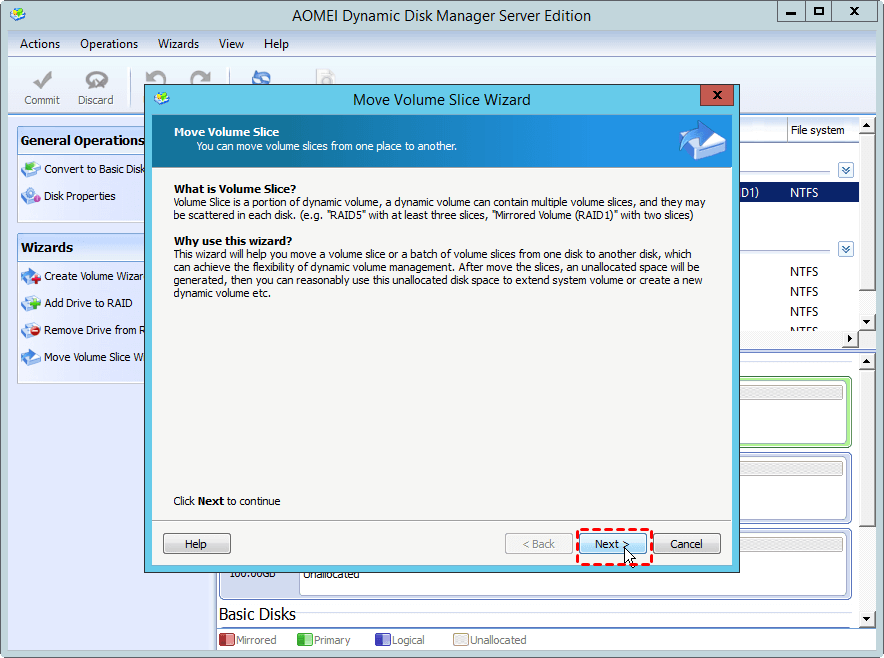

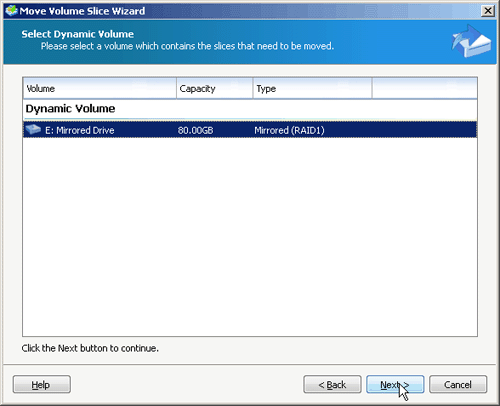

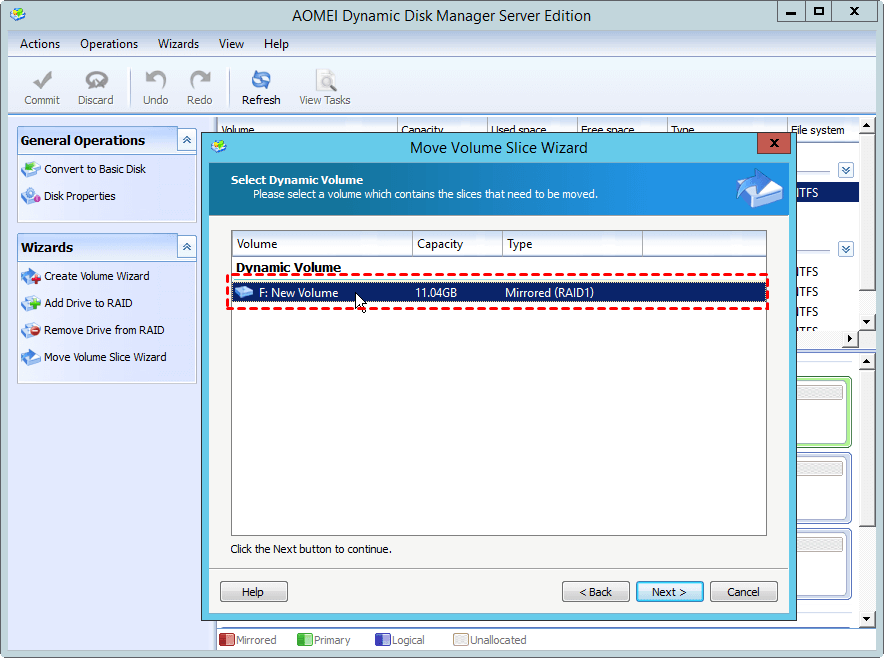

Step 3. In the pop-up window, click "Next" to skip the first page and select dynamic volume (E: Mirrored Drive). Then, click "Next" to continue.

Next

Select Mirrored Volume

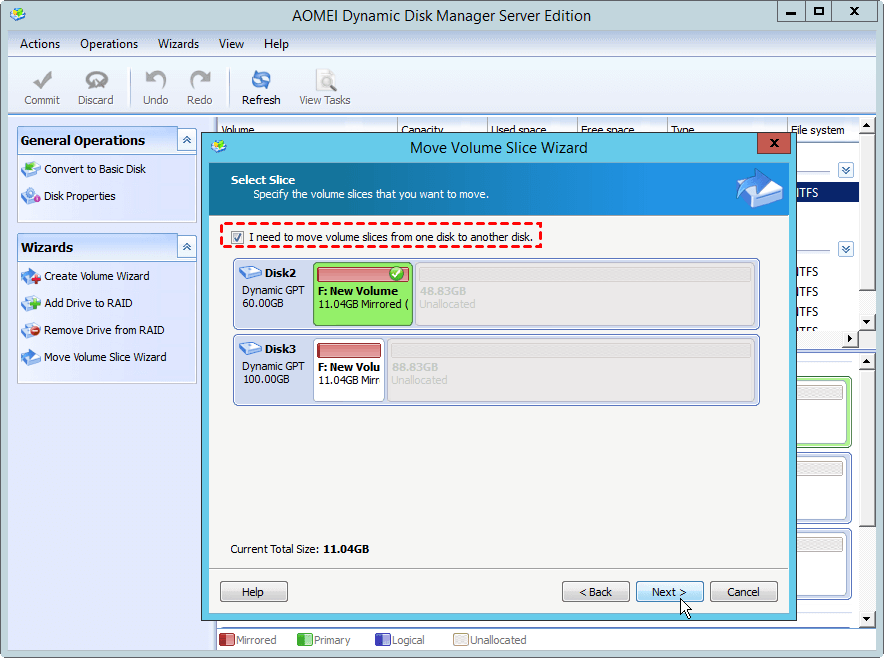

Step 4.Tick "I need to move volume slice from…" and select mirrored volume on Disk 2. Then, click "Next" to continue.

Need to Move Slice

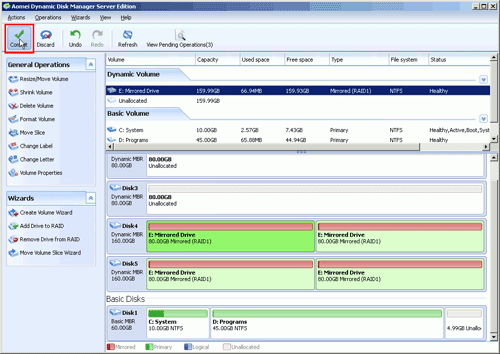

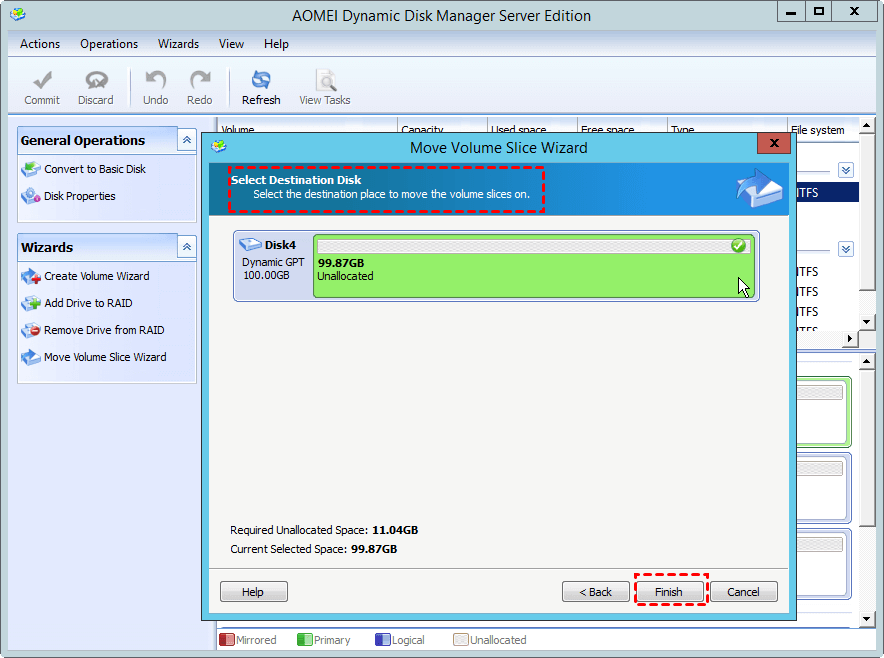

Step 5. Select the larger drive to replace. Then, click "Finish" to return to main window.

Finish

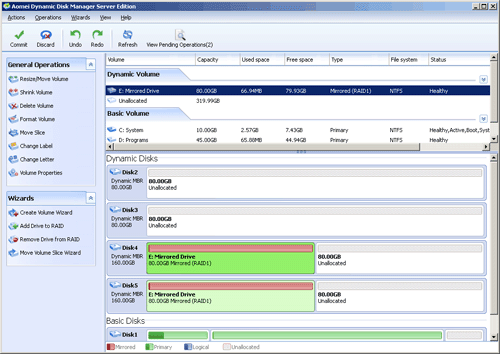

Repeat the steps above and replace mirrored volume on Disk 3 with larger drive on Disk 5.

Summary

There are two methods for you to choose to replace mirrored drive with a larger one. Compared with method 1, the AOMEI Partition Assistant Server offers an easier way. Besides, it is also able to extend mirrored drive with unallocated space, convert dynamic disk to basic without deleting volumes, clone hard drive, migrate OS to SSD, etc. If you want to install this amazing software on unlimited computers, you can try its Unlimited Edition.
