By Emily / Last Updated April 22, 2022

Unallocated space after cloning

“I originally had a 500GB HDD and suddenly my PC kept freezing with the HDD lights staying on. So I immediately thought that the drive was about to fail. I immediately bought a 1TB Samsung SSD and cloned the old HDD to the Samsung using some software. Here is the problem: After cloning and replacing the HDD with Samsung, Windows only sees (in Windows Explorer) and allows me to use 500GB of the Samsung drive. However, if I go to Disk Management, Windows recognizes it as a 1TB drive and there is also an unallocated space after the 500GB partition. I'm not sure why cloned hard drive left unallocated space and how to fix it. Does anybody know how to deal with this?”

Do you have the same confusion after cloning hard drive to Samsung SSD or to other kinds of hard drive? The most possible corresponding answer would be, you clone the old drive byte for byte. You get the same layout because you cloned exactly the same file system and partition tables. That’s what you ended up with, an exact copy of the original partition. Besides, the unallocated space may exist before and after the cloned partition.

How to use unallocated space after cloning SSD/HDD?

If you get a piece of unallocated disk space after you clone hard disk to larger HDD or SSD, you will not be allowed to use it for data storage until you create a new partition with it, or add it to another existing partition. Creating a new partition with the unallocated space is pretty easy. What if you want to add the unallocated space and extend partition after cloning? You have different options in different situations. Just keep reading!

Situation 1:  Unallocated space right behind the target partition

If the unallocated space is right behind the target partition that you want to add into, then you canuse Disk Management to directly combine them. Right click the nearest partition that next to the unallocated space. Select Extend Volume.

Extend

Follow the prompts that will appear to complete this operation.

Wizard

Situation 2: Unallocated space is distributed throughout the hard drive

If the unallocated space is not right behind the target partition, adn distributes throughout the hard drive, you can switch to a free partition manager. Here I would like to recommend you using AOMEI Partition Assistant Standard. It is free without any bundled adware for Windows 7/8/10/11 and Windows XP/Vista users. It allows you to merge multiple unallocated spaces into one partition to extend partition after cloning, as well as create new partition with the unallocated space. Download it and have a try.

Download Freeware Win 11/10/8.1/8/7/XP
Secure Download

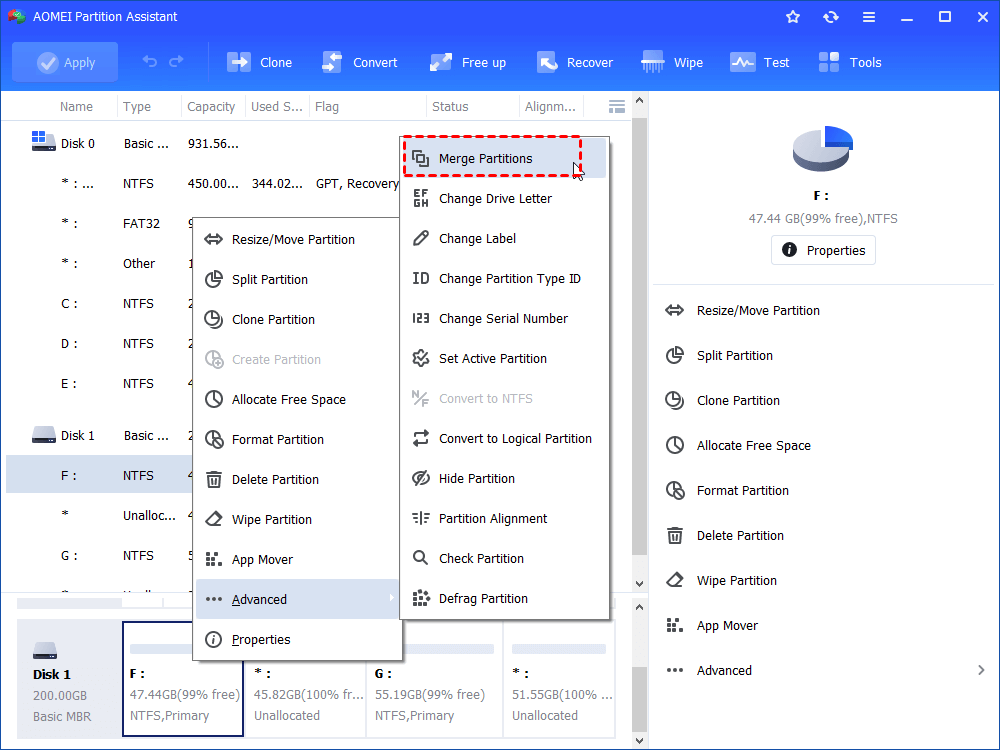

Step 1. Install and start AOMEI Partition Assistant Standard. Right click the partition you want to merge to, and select Merge Partitions.

Merge Partitions after Clone

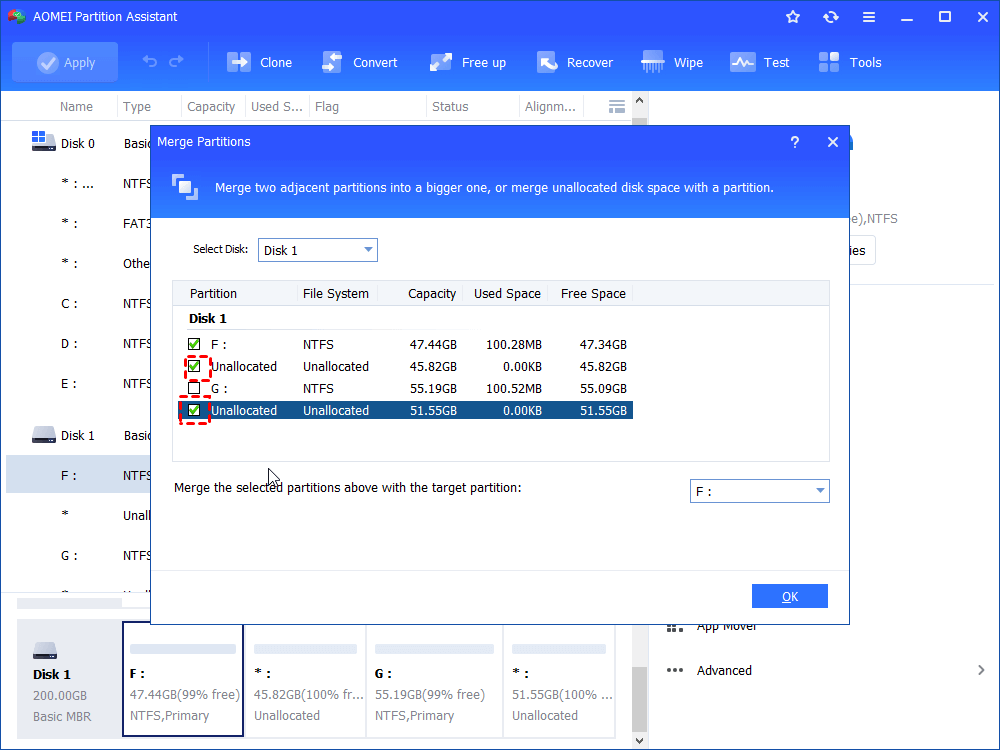

Step 2. Check all the unallocated space.

Tick All Unallocated Space

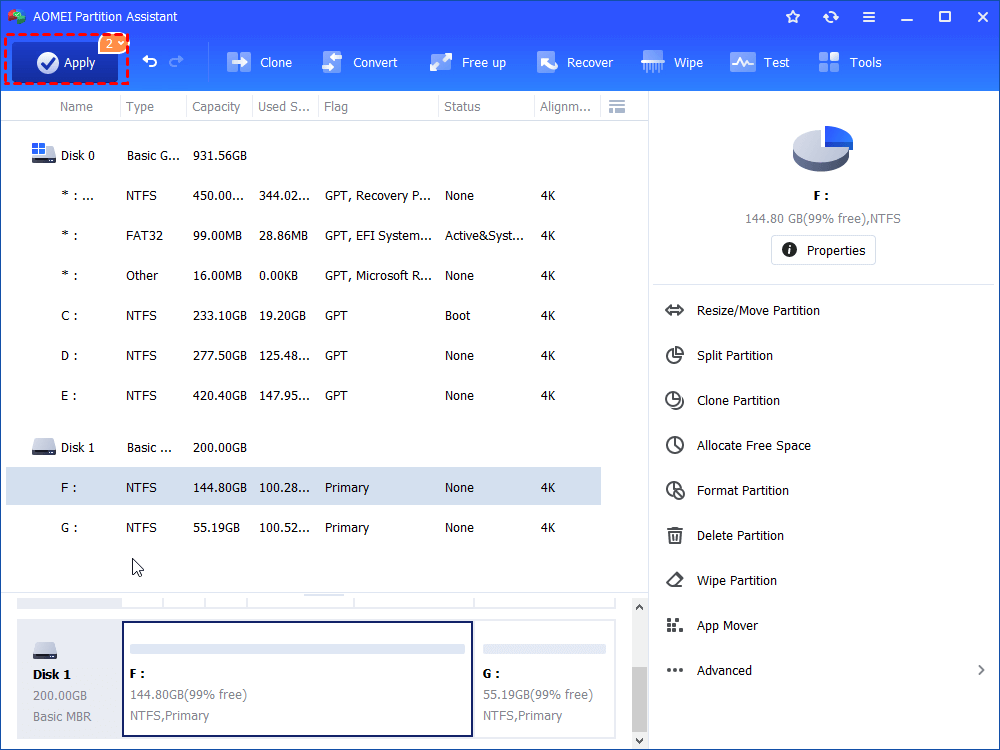

Step 3. Click Apply to put the operation into practice.

Apply Merge Partitions after Clone

Don’t be panic when you find your hard drive "lost" a big part of disk space which shows as unallocated space after cloning. You cannot find it in Windows Explore, but it does exist. Just find a way to unhidden it and make full use of it. With this freeware AOMEI Partition Assistant Standard, you can shrink C drive, make bootable CD, format/create/delete partition, and create W2G (Windows to go) for Windows 11 and Windows 10, etc.

Further reading: how to avoid unallocated space left after disk clone

Above is about how to use allocated space after cloning smaller disk to a larger disk. To avoid allocated space generated in your later disk clone, you can make the new disk space proportionally distributed as the cloned partitions during the clone process. If the disk clone tool you applied before does not support that setting, you can switch to AOMEI Partition Assistant Professional. It allows users to edit partitions on the new disk as required.

Disk Clone Wizard

Three options are available when cloning a smaller disk to a larger disk. To avoid unallocated space after clone, you can choose "Fit partitions to entire disk", which will distribute all space of the larger disk into several partitions according to the source hard drive partition size.

Summary

So, now you know what to do when you get unallocated space after cloning SSD or HDD to a larger disk in Windows 11, 10, 8, 7 and XP, Vista. In addition, you might also get unallocated space after formatting one hard drive or partition. If you formatted an entire hard disk, "quick partition" feature of the AOMEI Partition Assistant would be the best choice since it can quickly divide a disk into several partitions in one click. If you formatted merely one partition, then creating a new partition or extending other partitions with the left unallocated space will work for you.
